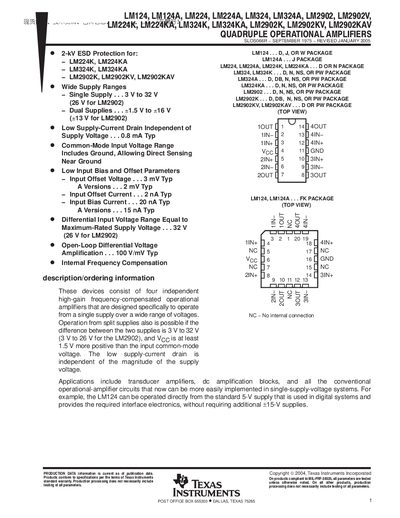

This datasheet is about LM224, LM324, LM2902 four operational amplifiers, these operational amplifiers have 2kV ESD protection, wide supply voltage range, low supply current, ground included common mode input voltage range, low input bias current and offset voltage, etc.
The document provides detailed specifications for a family of quadruple operational amplifiers from Texas Instruments, covering LM124, LM224, LM324 and LM2902 variants. It includes electrical characteristics such as supply voltage ranges, input offset voltage, bias currents, and ESD protection details.
Ordering information, package drawings, mechanical dimensions, and absolute‑maximum ratings are also listed, along with notes on warranty, usage conditions and reference URLs for additional TI product information.
| Maximum‑rated supply voltage | 32 V |
|---|---|
| Input offset voltage (typical) | 3 mV |
| Input bias current (typical) | 20 nA |
| Supply voltage range (single supply) | 0.8 V to 32 V |
The maximum‑rated supply voltage for the LM324 series is 32 V.
Typical input offset voltage is 3 mV.
