This document describes a product called SLOS414E, which is a high-gain, frequency-compensated operational amplifier suitable for automotive applications. The product features low power consumption, ESD protection, low input bias and offset parameters, etc.

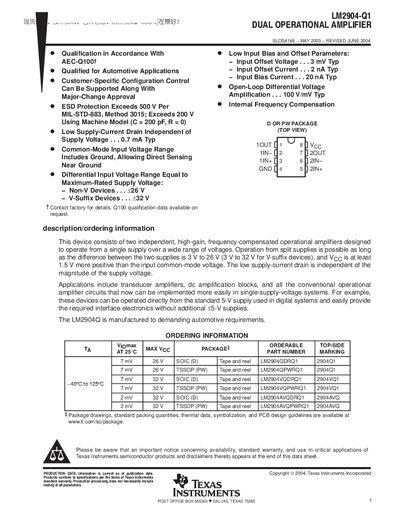

The LM2904-Q1 dual operational amplifier is designed for single‑supply operation over a wide voltage range and meets automotive AEC‑Q100 qualification. It offers low input offset voltage (3 mV typ) and low input offset current (2 nA typ), making it suitable for transducer amplifiers and other precision analog circuits.
The device is offered in SOIC and TSSOP packages, both available in tape‑and‑reel form, and complies with RoHS and MIL‑STD‑883 standards. Detailed electrical characteristics, absolute maximum ratings, and mechanical data are provided for design reference.
| Input offset voltage (typical) | 3 mV |
|---|---|
| Input offset current (typical) | 2 nA |
| Maximum supply voltage (non‑V devices) | +26 V |
| Supply‑current drain (typical) | 0.7 mA |
| Package options | SOIC (D) and TSSOP (PW) tape‑and‑reel |
The typical input offset voltage is 3 mV.
It supports up to +26 V for non‑V devices and up to +32 V for V‑suffix devices.
The device is offered in SOIC (D) and TSSOP (PW) packages, both in tape‑and‑reel form.
The typical supply current drain is 0.7 mA.
