This datasheet provides detailed information about OP07 devices, including features, applications, parameters, pin diagram, package, ordering information, etc.

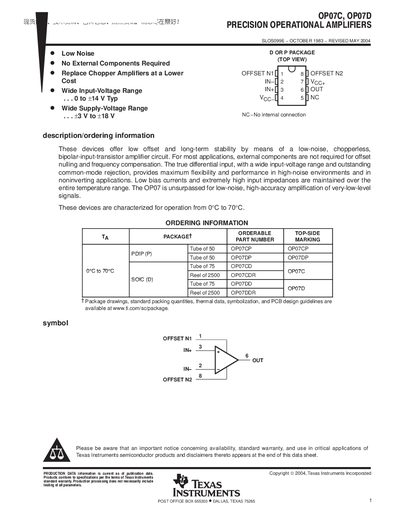

The OP07C and OP07D are low‑noise, precision operational amplifiers offering low offset, high input impedance, and wide supply voltage ranges. They are supplied in various packages such as PDIP, SOIC, and plastic dual‑in‑line, with detailed ordering information and package options provided.
The document includes electrical characteristics, recommended operating conditions, absolute maximum ratings, mechanical dimensions, and packaging details, along with an important notice on product availability and warranty.
| Supply voltage (VCC+) | +3 V to +18 V |
|---|---|
| Common‑mode input voltage range | +15 V to -13 V |
| Operating temperature range | 0 °C to 70 °C |
The devices operate with a supply voltage from +3 V to +18 V.
The common‑mode input voltage range is +15 V to -13 V.
They are specified for operation from 0 °C to 70 °C.
