The OP07 series of low-noise operational amplifiers feature low bias current, extremely high input impedance, and an ultra-wide input voltage range, making them well-suited for a variety of low-noise, low-power applications.
The OP07C and OP07D are low‑noise, chopper‑less bipolar input operational amplifiers offering low offset and long‑term stability. They provide a true differential input, wide input‑voltage range, and high common‑mode rejection, making them suitable for high‑noise environments and non‑inverting applications. The devices operate from 0 °C to 70 °C and require no external components for offset nulling or frequency compensation in most applications.

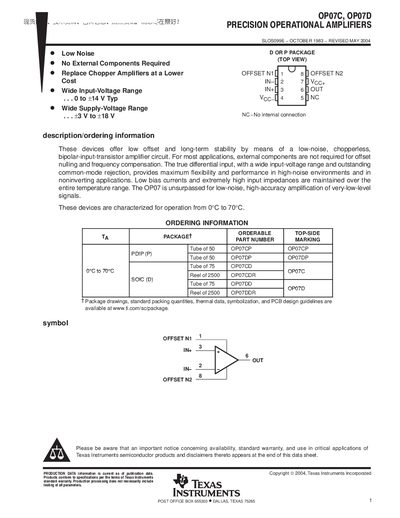

The datasheet includes ordering information for multiple package types (PDIP, SOIC, etc.), absolute maximum ratings, recommended operating conditions, electrical characteristics such as supply voltage range (+3 V to +18 V), common‑mode input range (+15 V to –13 V), noise performance, slew rate, and thermal data. Package option addenda and mechanical drawings are also provided.
| Supply voltage range | +3 V to +18 V |
|---|---|
| Common‑mode input voltage range | +15 V to –13 V |
| Operating temperature range | 0 °C to 70 °C |
| Available package types | PDIP, SOIC, etc. |
The devices operate with a supply voltage from +3 V to +18 V.
They are specified for operation from 0 °C to 70 °C.
The amplifiers are offered in PDIP, SOIC, and other package styles.
