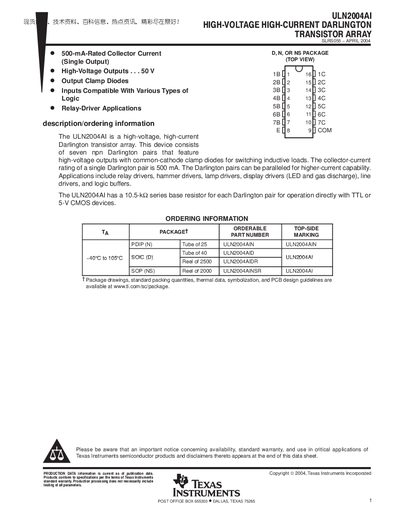

The ULN2004AI is a high-voltage, high-current Darlington transistor array produced by TI
The ULN2004AI Darlington transistor array provides seven NPN Darlington pairs with high‑voltage (50 V) outputs and common‑cathode clamp diodes, suitable for relay, lamp, display, line‑driver and logic‑buffer applications. Each pair is rated for 500 mA collector current and can be paralleled for higher current capability.
The datasheet lists absolute‑maximum ratings, electrical characteristics, propagation‑delay timings, and mechanical dimensions for PDIP, SOIC and SOP packages. Ordering information, typical application circuits and test‑setup diagrams are also included.
| Operating temperature range | -40 °C to 105 °C |
|---|
