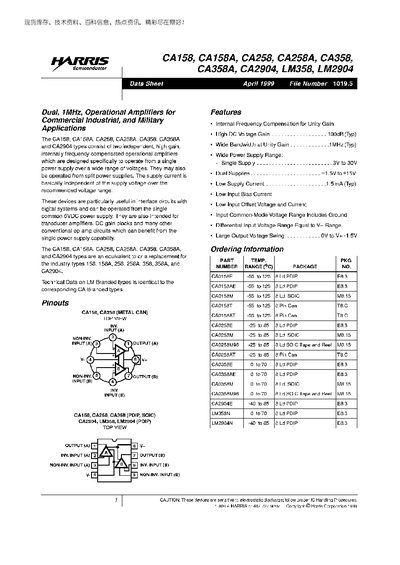

The document describes a family of dual, 1 MHz operational amplifiers designed for commercial, industrial, and military applications. It lists features such as internal frequency compensation, high DC voltage gain, wide bandwidth, low supply current, and large output swing.
Detailed sections cover absolute maximum ratings, operating conditions, electrical specifications for each device, typical performance curves, schematic diagrams, and mask layout dimensions. The data is presented for both PDIP and SOIC packages and includes temperature and supply voltage dependencies.
| Supply Voltage Range (single supply) | 0.2 V to 30 V |
|---|---|
| Low Supply Current (typical) | 1.5 mA |
| High DC Voltage Gain (typical) | 100 dB |
| Unity‑Gain Bandwidth (typical) | 1 MHz |
| Maximum Output Voltage Swing | V+ − 1.5 V |
The typical supply current is about 1.5 mA.
The CA2904 can be operated up to 26 V (or +13 V).
Typical input offset voltage is between 2 mV and 5 mV.
