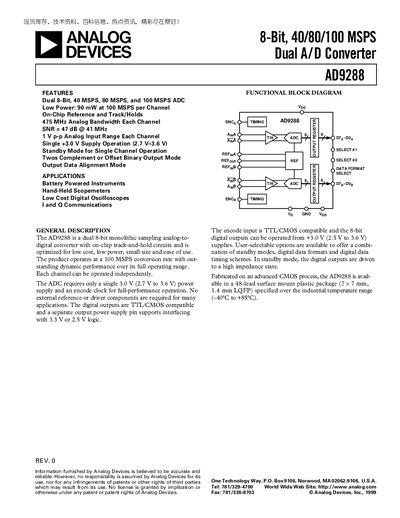

This document is about the function and features of AD9288, AD9288 is an 8-bit, 40/80/100 MSPS dual channel A/D converter.
The AD9288 is a dual 8‑bit analog‑to‑digital converter that operates at 40, 80, or 100 MSPS per channel. It features low power consumption, on‑chip reference and track‑hold circuits, and a single‑supply operation from 2.7 V to 3.6 V.
The document provides a functional block diagram, full electrical specifications, pin‑out details, typical performance graphs, and mechanical dimensions for the 48‑lead LQFP package. It also includes handling cautions such as ESD sensitivity and recommended standby modes.
| Maximum Sample Rate | 100 MSPS per channel |
|---|---|
| Supply Voltage | Single +3.0 V (2.7 V‑3.6 V) |
The AD9288 can sample at up to 100 MSPS per channel.
It operates from a single supply of +3.0 V, with an allowed range of 2.7 V to 3.6 V.
At 100 MSPS the device dissipates about 90 mW per channel, or roughly 180 mW total.
Yes, the AD9288 is an ESD‑sensitive device and can be permanently damaged by high‑energy discharges.
