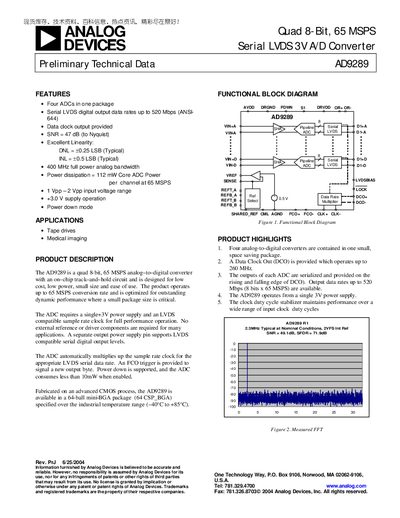

AD9289 is a quad 8-bit, 65 MSPS analog-to-digital converter with an on-chip track-and-hold circuit and is designed for low cost, low power, small size and ease of use. The product operates up to 65 MSPS conversion rate and is optimized for outstanding dynamic performance where a small package size is critical.
The AD9289 is a quad 8‑bit analog‑to‑digital converter that operates at up to 65 MSPS and provides serial LVDS outputs. It runs from a single 3 V supply, includes an on‑chip track‑and‑hold circuit, and is offered in a 64‑ball mini‑BGA package for compact designs.
Key features include a 400 MHz analog bandwidth, low power dissipation (558 mW per channel at full rate, <10 mW in power‑down), and built‑in data clock output up to 520 Mbps. The device is specified for industrial temperature ranges (‑40 °C to +85 °C).
| Resolution | 8 bits |
|---|---|
| Analog Input Voltage Range | 1‑2 Vpp |
The device accepts a differential input of 1 Vpp to 2 Vpp.
