The EL7182 is a CCD driver from Intersil that features 3V and 5V input compatibility, speeds up to 10MHz, reduced clock skew, 20ns switching/delay time, 2A peak drive, low quiescent current, wide operating voltage, and RoHS compliance. It is suitable for applications such as CCD drivers requiring high-contrast imaging, differential line drivers, and push-pull circuits.

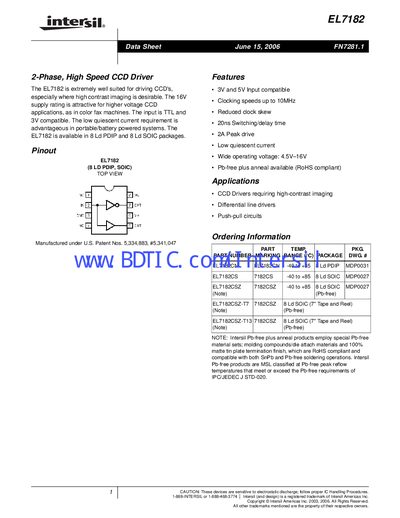

The EL7182 is a 2‑phase, high‑speed CCD driver designed for high‑contrast imaging applications such as color fax machines. It accepts both 3 V and 5 V logic inputs, offers clocking speeds up to 10 MHz, and provides a 2 A peak output drive while maintaining low quiescent current, making it suitable for portable or battery‑powered systems.
The device is supplied in 8‑lead PDIP and 8‑lead SOIC packages. Electrical specifications include a wide operating voltage range of 4.5 V‑16 V, a supply rating of 16.5 V, and temperature ranges from –65 °C to +150 °C (storage) and –40 °C to +85 °C (ambient). Timing performance shows rise times of 75 ns and fall times of 10 ns (500 pF load), with turn‑on and turn‑off delays of 18 ns and 20 ns respectively.
| Input voltage compatibility | 3 V and 5 V |
|---|---|
| Maximum clock speed | 10 MHz |
| Peak output current | 2 A |
| Operating voltage range | 4.5 V‑16 V |
| Storage temperature range | -65 °C to +150 °C |
| Ambient operating temperature | -40 °C to +85 °C |
| Rise time (500 pF load) | 75 ns |
| Fall time (500 pF load) | 10 ns |
| Turn‑on delay | 18 ns |
| Turn‑off delay | 20 ns |
The device can deliver up to 2 A peak output current.
It is available in 8‑lead PDIP and 8‑lead SOIC packages.
The EL7182 operates from 4.5 V to 16 V.
