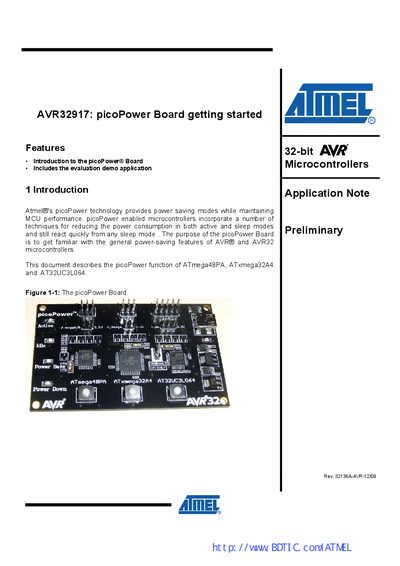

Atmel AVR32917 picoPower Board Application Note

About this manual

The picoPower Board is an evaluation platform that lets users explore the power‑saving features of Atmel AVR and AVR32 microcontrollers. It supports ATmega48PA, ATxmega32A4 and AT32UC3L064 devices and provides a simple way to switch between active, idle, power‑save and power‑down modes.

The note describes the board's hardware schematics, USB mini power input, dual regulators (3.3 V and 1.8 V), jumper settings for current measurement, and typical current consumption curves for each operating mode.

What's inside

• Introduction
• Featured modes of operation
• Hardware schematics
• Operating voltage
• Current measurement
• Power Consumption

Specifications

Frequently asked questions

How do you change the operating mode on the picoPower Board?

Press the button below the device; the LED lights while the key is pressed and turns off when released, indicating the selected mode.

What voltage can be used to power the AT32UC3L064 on the board?

The AT32UC3L064 can be powered by either 3.3 V or 1.8 V, depending on the mode of operation.

When should the 7.8 V jumper be set?

The 7.8 V jumper must only be set if the 1.8 V power supply is connected; otherwise it must remain open.
