AD8186/AD8187 is a 480 MHz single-supply (5 V) triple 2:1 multiplexer with fully buffered inputs and outputs. It features fast channel-to-channel switching, high speed operation, low current consumption, and excellent video specifications.
The AD8186 (gain = +1) and AD8187 (gain = +2) are 480 MHz single‑supply, triple 2‑to‑1 multiplexers designed for high‑speed video applications. They feature 4 ns switching, low crosstalk, and a high‑impedance disable mode, all in a 24‑lead TSSOP package.

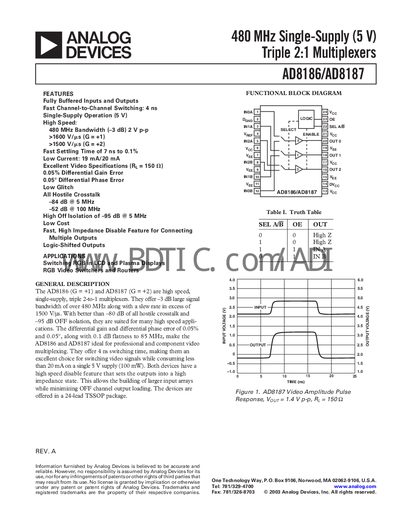

The datasheet provides detailed specifications, switching characteristics, absolute maximum ratings, pin configuration, and ordering information, along with typical performance graphs and outline dimensions.
| Operating Supply Voltage Range | 3.5 V to 5.5 V |
|---|
The devices operate from 3.5 V to 5.5 V.
Both devices are offered in a 24‑lead thin‑shrink small‑outline package (TSSOP).
