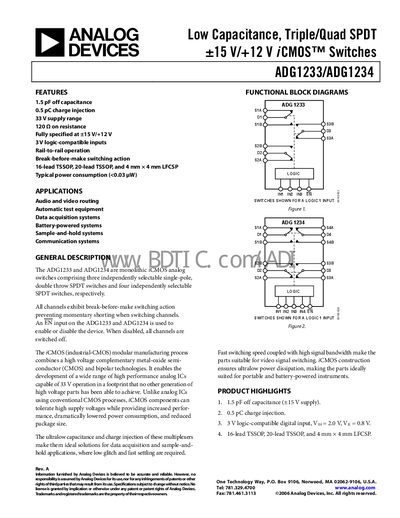

The ADG1233 and ADG1234 are monolithic iCMOS analog switches comprising three independently selectable single-pole, double throw SPDT switches and four independently selectable SPDT switches, respectively. All channels exhibit break-before-make switching action preventing momentary short.
The ADG1233 and ADG1234 are monolithic CMOS analog switches offering three (ADG1233) or four (ADG1234) independently selectable SPDT switches. They feature low off‑capacitance, minimal charge injection, and rail‑to‑rail operation, making them suitable for audio/video routing, data acquisition, and battery‑powered instruments.
The document includes detailed electrical specifications, absolute maximum ratings, pin‑out diagrams, package dimensions, and an ordering guide for the 16‑lead TSSOP, 20‑lead TSSOP, and LFCSP variants.
| Off capacitance | 1.5 pF typ |
|---|---|
| Charge injection | 0.5 pC typ |
| Supply voltage range | 33 V |
| On resistance (Ron) | 120 Ω typ |
| Logic‑compatible input voltage | 3 V |
| Bandwidth (‑3 dB) | 900 MHz typ (dual supply) |
| Source off leakage current | 0.02 nA typ |
The typical off‑capacitance is 1.5 pF.
Typical charge injection is 0.5 pC.
They operate over a 33 V supply range.
The on‑resistance is typically 120 Ω.
