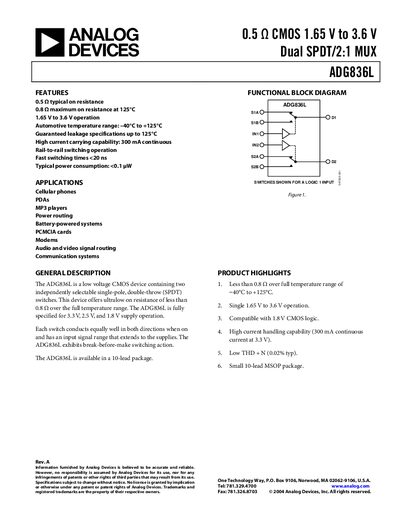

The ADG836L is a low-voltage CMOS device containing two independently selectable single-pole, double-throw (SPDT) switches. This device offers ultra-low on-resistance, low power consumption, high current drive capability and fast switching times, making it suitable for a wide range of portable and automotive applications.
The ADG836L is a low‑voltage CMOS dual SPDT analog switch offering ultralow on‑resistance, high current capability, and rail‑to‑rail operation across a wide supply range. It is designed for automotive, portable, and communication applications, with fast switching (<20 ns) and minimal power consumption.
The document includes functional description, pin terminology, absolute maximum ratings, detailed electrical specifications, typical performance curves, test circuit examples, package dimensions, and ordering information. It also contains revision history and legal notices.
| On‑Resistance (maximum at 125 °C) | 0.8 Ω |
|---|---|
| Supply Voltage Range | 1.65 V to 3.6 V |
| Continuous Current Capability | 300 mA |
| Switching Time | <20 ns |
| Power Consumption (typical) | <0.1 pW |
| Operating Temperature Range | -40 °C to +125 °C |
| Input High Voltage (minimum) | 2 V |
| Input Low Voltage (maximum) | 0.8 V |
| Off‑State Leakage Current (typical) | 0.2 nA |
It operates from 1.65 V up to 3.6 V.
The device can carry up to 300 mA continuous current.
The switch has a fast switching time of less than 20 ns.
