ADG1436 is a low-power, high-performance, dual-channel switch that operates at 12 V, ±15 V, and ±5 V. It has a 1.5 Ω on-resistance, 0.3 Ω on-resistance flatness, and 0.1 Ω on-resistance match between channels, which enables high precision and low noise signal switching. ADG1436 is manufactured in iCMOS process and features low power consumption, high performance, and low noise. It has 16-lead TSSOP and 4 mm × 4 mm, 16-lead LFCSP packages, which are suitable for automatic test equipment, data acquisition systems, battery-powered systems, sample-and-hold systems, audio signal routing, communication systems, and relay replacement applications.
The ADG1436 is a monolithic CMOS dual SPDT switch with independent channel control, rail‑to‑rail operation, and break‑before‑make action. It is suited for automatic test equipment, data acquisition, battery‑powered systems, audio routing, and relay replacement.

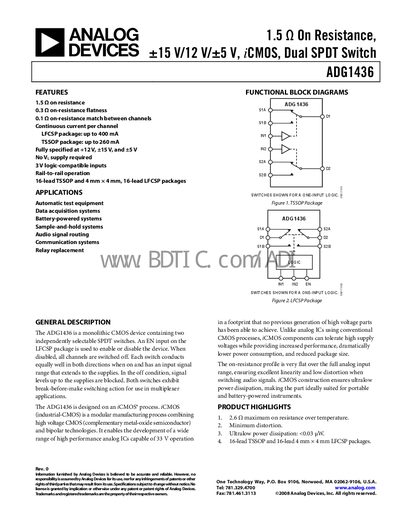

The document lists detailed electrical specifications, pin‑out diagrams, absolute maximum ratings, continuous current per channel, and ordering information for both TSSOP and LFCSP packages.
| On‑Resistance (Ron) typical | 1.5 Ω |
|---|---|
| On‑Resistance Match | 0.1 Ω |
| Continuous Current per Channel (LFCSP, 15 V dual supply) | 400 mA max |
| Supply Voltage Range (15 V dual supply) | Vop = +15 V + 10%, Vss = –15 V + 10% |
| Input High Voltage | 2.0 V min |
The typical on‑resistance is 1.5 Ω.
The LFCSP package can handle up to 400 mA continuous current per channel.
Vop is +15 V + 10% and Vss is –15 V + 10% (GND = 0 V).
