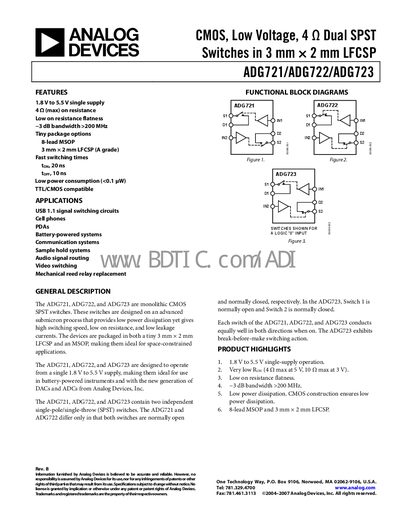

The ADG721, ADG722, and ADG723 are monolithic CMOS SPST switches, with a single supply voltage of 1.8 V to 5.5 V and an on resistance of 4 Ω (max).
The ADG721, ADG722, and ADG723 are monolithic CMOS SPST switches designed for low‑voltage operation (1.8 V to 5.5 V) and offered in compact 8‑lead MSOP and 3 mm × 2 mm LFCSP packages. They are suited for USB 1.1 signal routing, cell phones, PDAs, battery‑powered systems, audio/video switching, and as replacements for mechanical reed relays.
Key performance figures include a typical on‑resistance of 2.5 Ω, a –3 dB bandwidth greater than 200 MHz, turn‑on time around 20 ns and turn‑off time about 10 ns, and ultra‑low leakage currents (≈0.01 nA). The datasheet provides detailed pin descriptions, functional block diagrams, absolute maximum ratings, and typical performance curves.
| Supply voltage range | 1.8 V to 5.5 V single supply |
|---|---|
| Bandwidth (‑3 dB) | >200 MHz |
| Turn‑on time (ton) | 20 ns |
| Turn‑off time (torr) | 10 ns |
| Leakage current (off, source) | 0.01 nA typ |
| Package options | 8‑lead MSOP and 3 mm × 2 mm LFCSP |
The device operates from 1.8 V to 5.5 V with a single supply.
Turn‑on time is about 20 ns and turn‑off time about 10 ns.
Both an 8‑lead MSOP and a 3 mm × 2 mm LFCSP are offered.
