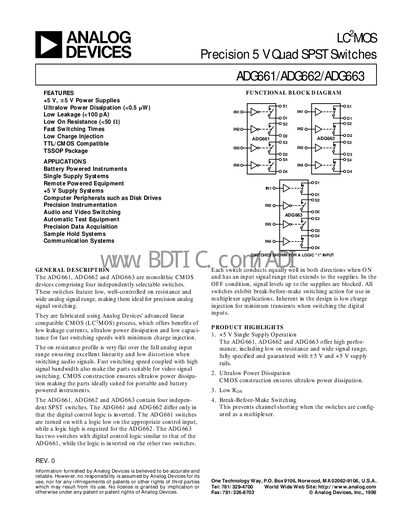

ADG661/ADG662/ADG663 is a LC2MOS precision 5V quad single-pole single-throw switch. The switch features ultralow power dissipation, low leakage current, low on resistance, fast switching times, and low charge injection.
The ADG661, ADG662 and ADG663 are monolithic CMOS quad SPST switches that operate from a single +5 V supply. They offer ultralow power dissipation, low on‑resistance, fast switching and low charge injection, making them suitable for precision analog, audio, video and battery‑powered applications. The devices are TTL/CMOS compatible and come in a 16‑lead TSSOP package.
The document includes detailed electrical specifications, pin configurations, functional block diagrams, typical performance curves, and recommended test circuits. Ordering information, absolute maximum ratings and handling precautions (including ESD sensitivity) are also provided.
