The ADG821/ADG822/ADG823 are low-power, low-voltage, high-switching-speed monolithic CMOS SPST switches.
The ADG821, ADG822, and ADG823 are monolithic CMOS SPST switches designed for low power dissipation, high switching speed, and low on‑resistance. They operate from a single 1.8 V to 5.5 V supply and are suitable for battery‑powered instruments, power routing, and signal routing in communication and data‑acquisition systems.

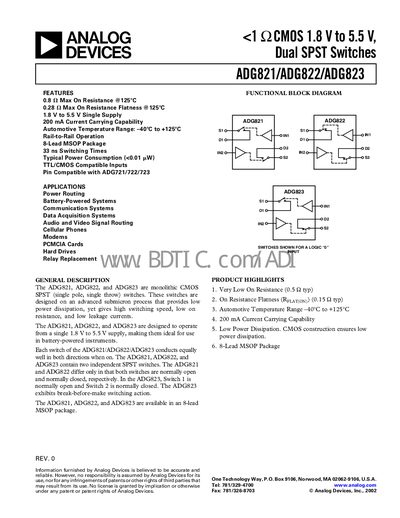

The devices are offered in an 8‑lead MSOP package and meet automotive temperature specifications (‑40 °C to +125 °C). The datasheet provides detailed electrical characteristics, absolute maximum ratings, pin configuration, and ordering information for each part number.
| Supply Voltage Range | 1.8 V to 5.5 V |
|---|---|
| On‑Resistance (Ron) typ | 0.5 Ω |
| On‑Resistance Flatness typ | 0.15 Ω |
| Switching Time (ton) typ | 33 ns |
| Current Carrying Capability | 200 mA |
| Operating Temperature Range | -40 °C to +125 °C |
| Package | 8‑Lead MSOP |
| Source OFF Leakage Current (Is OFF) typ | +0.01 nA |
| Input High Voltage (Vih) min | 2.0 V |
| Input Low Voltage (Vil) max | 0.8 V |
They operate from a single 1.8 V to 5.5 V supply.
The typical on‑resistance is 0.5 Ω.
They are available in an 8‑lead MSOP (micro Small Outline IC) package.
They are rated for automotive temperature range from –40 °C to +125 °C.
