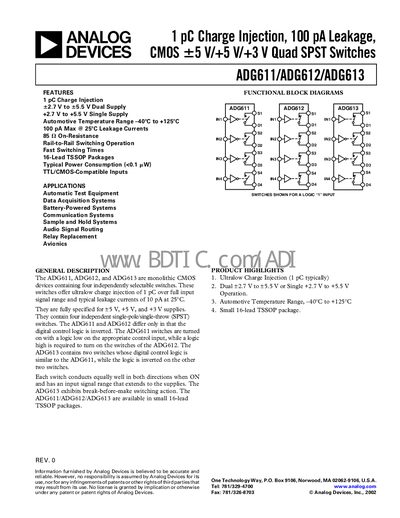

The ADG611/ADG612/ADG613 are monolithic CMOS devices containing four independently selectable switches. These switches offer ultralow charge injection and a maximum leakage current of 100pA.
The ADG611/ADG612/ADG613 family provides four independently selectable SPST switches in a 16‑lead TSSOP package. They feature ultralow charge injection (1 pC typical), very low leakage currents, and rail‑to‑rail switching for both dual‑supply (+2.7 V to +5.5 V) and single‑supply (+2.7 V to +5.5 V) operation. The devices are specified for an automotive temperature range of –40 °C to +125 °C.
Typical applications include automatic test equipment, data‑acquisition systems, battery‑powered and communication systems, sample‑and‑hold circuits, audio signal routing, relay replacement, and avionics. Detailed electrical specifications, absolute maximum ratings, ordering information, and typical performance graphs are provided.
| Charge Injection | 1 pC typical |
|---|---|
| On‑Resistance (Ron) | 85 Ω typ |
| Source OFF Leakage (Is) | 0.01 nA typ |
| Drain OFF Leakage (Ip) | 0.01 nA typ |
| Input High Voltage (Vin) | 2.4 V min |
| Input Low Voltage (Vlow) | 0.8 V max |
| Operating Temperature Range | -40 °C to +125 °C |
| Package | 16‑Lead TSSOP (RU‑16) |
The devices have a typical charge injection of 1 pC.
The automotive‑grade devices are rated from –40 °C to +125 °C.
All three parts are available in a 16‑lead TSSOP package (RU‑16).
