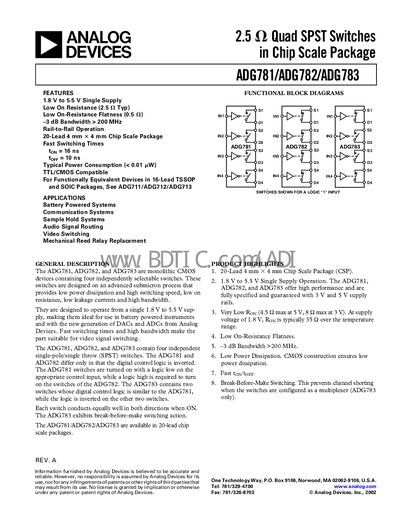

This document is ADG781/ADG782/ADG783 Quad SPST Switches datasheet
The ADG781, ADG782, and ADG783 are monolithic CMOS quad SPST switches offered by Analog Devices. They operate from a single 1.8 V to 5.5 V supply, feature low on‑resistance (typ. 2.5 Ω), fast switching (ton ≈ 16 ns, torr ≈ 10 ns) and a –3 dB bandwidth greater than 200 MHz, making them suitable for battery‑powered instruments, video switching and audio routing.
These devices are supplied in a 20‑lead 4 mm × 4 mm chip‑scale package (CSP) and include ESD protection. The datasheet provides detailed specifications, absolute‑maximum ratings, ordering information, test circuits and typical performance graphs.
| Supply Voltage | 1.8 V to 5.5 V |
|---|---|
| On‑Resistance (Ron) typical | 2.5 Ω typ |
| Switching Time (ton) | 16 ns typ |
| Switching Time (torr) | 10 ns typ |
| Bandwidth (‑3 dB) | >200 MHz |
| Package | 20‑Lead 4 mm × 4 mm Chip Scale Package (CSP) |
The typical on‑resistance is 2.5 Ω.
They operate from a single 1.8 V to 5.5 V supply.
The typical turn‑on time (ton) is 16 ns and turn‑off time (torr) is 10 ns.
The –3 dB bandwidth exceeds 200 MHz.
