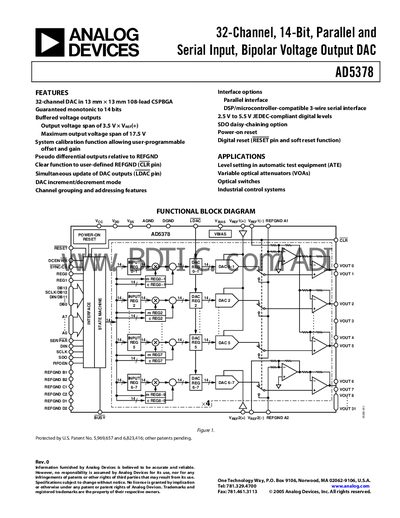

AD5378 is a 32-channel, 14-bit, parallel and serial input, bipolar voltage output DAC. It features guaranteed monotonic to 14 bits, buffered voltage outputs, output voltage span of 3.5 V × VREF(+), maximum output voltage span of 17.5 V, etc.
The AD5378 is a 32‑channel, 14‑bit digital‑to‑analog converter packaged in a 108‑lead CSPBGA. It provides bipolar voltage outputs with a maximum span of 17.5 V (‑8.75 V to +8.75 V) and supports both parallel and 3‑wire serial interfaces.
Key features include guaranteed monotonicity, programmable gain and offset per channel, simultaneous update of all outputs, and a range of timing and power‑supply specifications suitable for automatic test equipment and optical applications.
| Resolution | 14 Bits |
|---|---|
| Relative Accuracy | +3 LSB max (‑40°C to +85°C) |
| Zero‑Scale Error | +12 mV max (‑40°C to +85°C) |
| Full‑Scale Error | +12 mV max (‑40°C to +85°C) |
| Gain Error | +8 mV max (‑40°C to +85°C) |
| Output Voltage Range | ‑8.75 V to +8.75 V |
| Short‑Circuit Current | 15 mA max |
| Load Current | 15 mA max |
| Output Noise Spectral Density | 350 nV/√Hz typ @ 1 kHz |
The maximum output voltage span is 17.5 V, giving a bipolar range of –8.75 V to +8.75 V.
It supports a double‑buffered parallel interface and a 3‑wire serial interface compatible with SPI, QSPI, Microwire and DSP standards, up to 50 MHz.
The AD5378 provides 14‑bit resolution.
Vop (Voo) must be 8.5 V to 16.5 V and Vss must be –3 V to –16.5 V.
