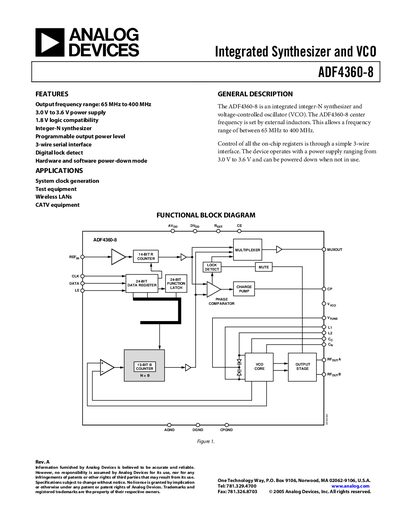

The ADF4360-8 is an integrated integer-N synthesizer and voltage-controlled oscillator (VCO) with programmable output power level and digital lock detect function. It is suitable for applications such as system clock generation, test equipment, wireless LANs, and CATV equipment.
The ADF4360-8 is an integrated integer‑N synthesizer and voltage‑controlled oscillator (VCO) with an output frequency range of 65 MHz to 400 MHz. Control is provided via a simple 3‑wire serial interface and the device operates from a 3.0 V to 3.6 V supply, with optional low‑power sleep mode.
The document includes full specifications, absolute maximum ratings, pin configuration, timing diagrams, typical performance curves, output‑matching recommendations, package dimensions, and an ordering guide. It also provides application notes for system clocks, test equipment, wireless LANs, and CATV equipment.
| Output frequency range | 65 MHz to 400 MHz |
|---|---|
| Supply voltage | 3.0 V to 3.6 V |
| Phase detector maximum frequency | 8 MHz |
| VCO phase noise @ 100 kHz offset | -120 dBc/Hz typ |
| Operating temperature range | -40 °C to +85 °C |
| Output power | -9 dBm typ |
The device covers frequencies from 65 MHz up to 400 MHz.
It operates from a 3.0 V to 3.6 V power supply.
The phase detector can operate up to 8 MHz.
It is rated for -40 °C to +85 °C operation.
