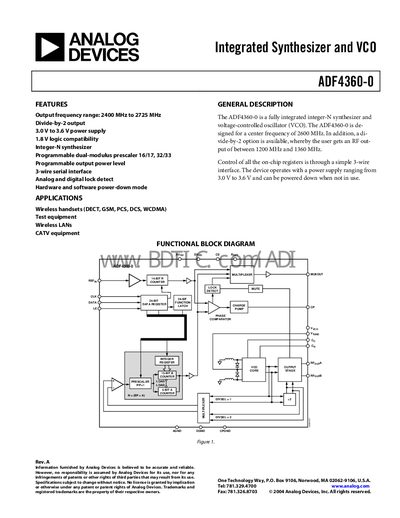

This document introduces Analog Devices ADF4360-0 integrated synthesizer and VCO, including output frequency range, power supply range, logic compatibility, synthesizer type, prescaler, output power level, serial interface, locking detection, power saving mode, etc.
The ADF4360-0 is a fully integrated integer‑N synthesizer and voltage‑controlled oscillator (VCO) designed for a center frequency of 2600 MHz with an optional divide‑by‑2 output. It operates from a 3.0 V to 3.6 V supply and is controlled via a simple 3‑wire serial interface.
The document includes detailed specifications such as output frequency range, power supply limits, pin descriptions, timing characteristics, absolute maximum ratings, typical performance curves, and application notes for wireless handsets, test equipment, and LANs.
| Output frequency range | 2400 MHz to 2725 MHz |
|---|---|
| Supply voltage | 3.0 V to 3.6 V |
| Input high voltage (Vin) | 15 V |
| Output power | -13 dBm to -6.5 dBm (programmable) |
| Phase‑noise (VCO) | -111 dBc/Hz @ 100 kHz offset |
| Operating temperature range | -40 °C to +85 °C |
The device can generate frequencies from 2400 MHz up to 2725 MHz.
It operates from a 3.0 V to 3.6 V power supply.
The device is rated for temperatures between –40 °C and +85 °C.
All on‑chip registers are accessed through a simple 3‑wire serial interface.
