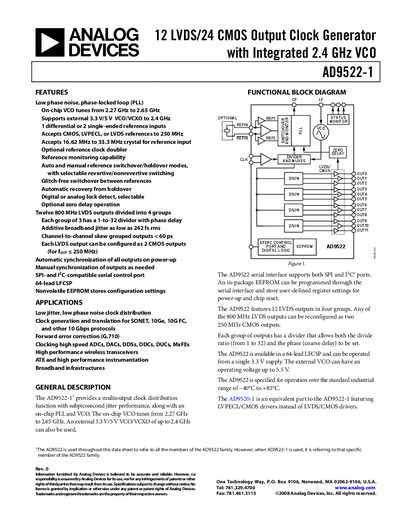

The product is a 12-channel LVDS/24-channel CMOS output clock generator with an integrated 2.4 GHz VCO, low phase noise, phase-locked loop (PLL).
The AD9522-1 provides a multi‑output clock distribution function with twelve LVDS outputs (24 CMOS) and an on‑chip VCO that tunes from 2.27 GHz to 2.65 GHz. It supports both SPI and I²C serial control, includes an EEPROM for configuration storage, and operates from a single 3.3 V supply (up to 5.25 V on VCP).\n\nDesigned for low‑jitter, low‑phase‑noise applications, the device can be used for clock generation and translation in high‑speed data interfaces, ADC/DAC clocking, wireless transceivers, and test equipment. Various operation modes allow internal VCO use, external VCO/VCXO integration, and zero‑delay synchronization.
| Number of LVDS outputs | 12 |
|---|---|
| Number of CMOS outputs | 24 |
| Integrated VCO frequency range | 2.27 GHz – 2.65 GHz |
| Supply voltage (VS) | 3.3 V ±5 % (3.135 V – 3.465 V) |
| VCP supply voltage | up to 5.25 V |
| Operating temperature range | −40 °C to +85 °C |
| Maximum LVDS output frequency | 800 MHz |
| Phase noise @ 1 kHz offset (LVDS) | −62 dBc/Hz |
The AD9522-1 provides twelve LVDS outputs, organized in four groups of three.
The on‑chip VCO can be tuned from 2.27 GHz to 2.65 GHz.
Each LVDS output can operate up to 800 MHz.
