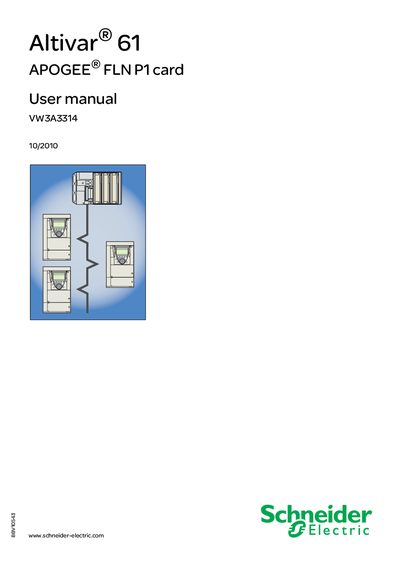

This manual provides detailed information about the Altivar® 61 APOGEE® FLN P1 card, including important information, getting started, introduction, document structure, notation, quick start, hardware setup, connecting to the bus, etc.
This user manual covers the Altivar 61 adjustable‑speed drive and the APOGEE® FLN P1 communication option card. It includes safety warnings, installation steps, hardware description, wiring practices, network configuration, and detailed parameter settings for control and monitoring.
The document also describes diagnostic procedures, predefined reports, and the required firmware version (V1.61E18) for proper operation of the option card, along with a quick‑start guide for rapid commissioning.
| Maximum DC bus voltage | < 42 V |
|---|---|
| Connector pins on APOGEE FLN P1 card | A, B, GND, SCR |
The APOGEE FLN P1 card can generate six predefined reports.
