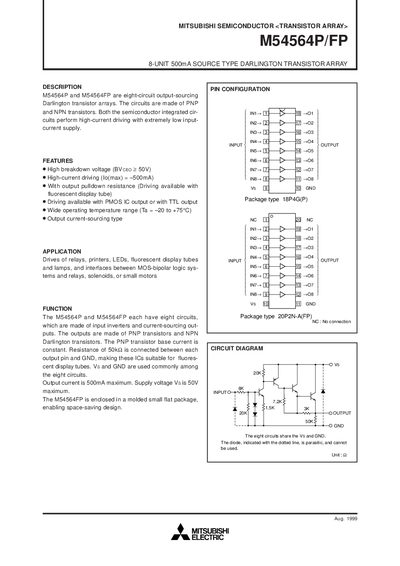

M54564P/FP are eight-circuit output-sourcing Darlington transistor arrays. The circuits are made of PNP and NPN transistors. Both the semiconductor integrated cir- cuits perform high-current driving with extremely low input-current supply.
The Mitsubishi M54564P/FP is an eight‑circuit output‑sourcing Darlington transistor array available in a compact flat package. It provides high‑current driving capability (up to 500 mA per circuit) with low input current and a high breakdown voltage of 50 V.
The document lists absolute maximum ratings, recommended operating conditions, electrical and switching characteristics, pin configuration, and timing diagrams, enabling designers to integrate the device into relay, printer, LED, fluorescent display tube, and motor driver applications.
| Breakdown voltage (BVceo) | 50 V |
|---|---|
| Maximum output current per circuit | 500 mA |
| Supply voltage (Vs) rating | 50 V |
| Input voltage range | 0.5 V – 30 V |
| Operating temperature range | -20 °C – +75 °C |
| Storage temperature range | -55 °C – +125 °C |
| Turn‑on time | 185 ns |
Each circuit can source up to 500 mA of output current.
The device has a breakdown voltage (BVceo) of 50 V.
The recommended supply voltage (Vs) is between 0 V and 50 V.
