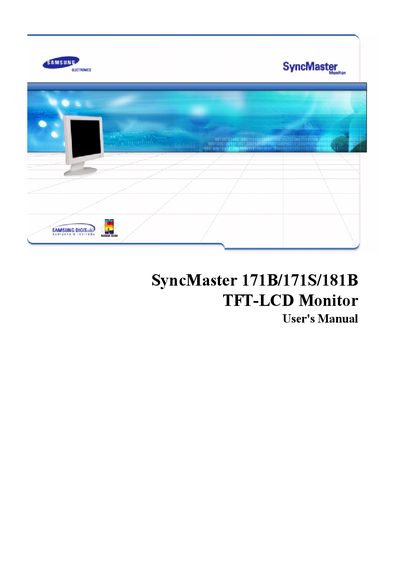

This manual provides detailed information about the SyncMaster 171B/171S/181B TFT-LCD monitor, including installation and connection instructions, troubleshooting, self-test features, cleaning instructions, and more.
This user manual covers essential safety instructions, proper handling, and precautions to prevent electric shock, fire, or damage to the monitor. It explains how to install the monitor, connect cables, and adjust settings for optimal picture quality.
The guide also details cleaning procedures, the Natural Color software installation, and provides full technical specifications such as panel size, resolution, power consumption, and mounting options.
| Model Name | SyncMaster 171B |
|---|---|
| Panel Size | 17.0 inch diagonal |
| Display Area | 337.92 (H) x 270.336 (V) mm |
| Pixel Pitch | 0.264 mm (H) x 0.264 mm (V) |
| Viewing Angle | 85° L/R/U/D |
| Maximum Power Consumption | 40 W |
| Dimensions (W×D×H) / Weight | 444.0 × 208.4 × 457.0 mm / 5.4 kg |
| VESA Mounting Interface | 100 mm × 100 mm |
| Operating Temperature | 50 °F ~ 104 °F (10 °C ~ 40 °C) |
No. Using a damaged or loose plug can cause electric shock or fire and should be avoided.
