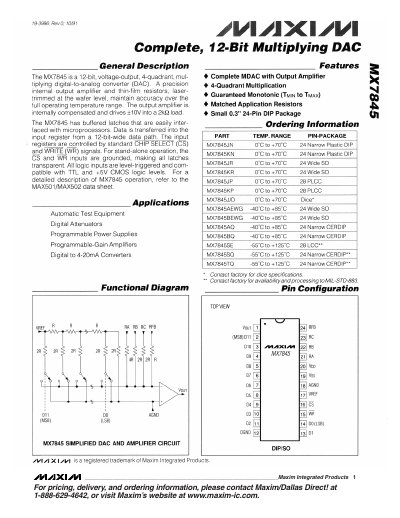

The MX7845 is a 12‑bit multiplying digital‑to‑analog converter featuring a precision internal output amplifier that can drive +10 V into a 2 kΩ load. It includes buffered latches for easy interfacing with microprocessors and supports standard chip‑select and write signals.
The device is offered in several package types (24‑pin DIP, SO, PLCC) and operates from a +12 V supply. Detailed electrical, timing, and AC performance specifications are provided for design guidance.
| Resolution | 12 bits |
|---|---|
| Supply Voltage Range | +12 V (typical) |
The MX7845 provides a 12‑bit resolution.
The MX7845 can operate from a +12 V supply.
