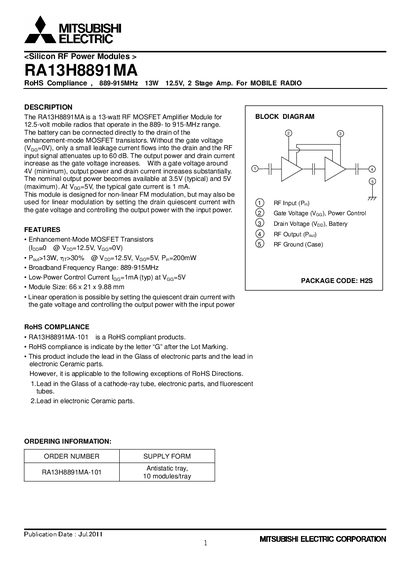

RA13H8891MA is a 13-watt RF MOSFET Amplifier Module for 12.5-volt mobile radios that operate in the 889- to 915-MHz range.
The RA13H8891MA is a 13‑watt RF MOSFET amplifier module designed for 12.5‑V mobile radios operating in the 889‑915 MHz band. It features enhancement‑mode MOSFET transistors, low‑power gate control (≈1 mA at 5 V), and can be used for both non‑linear FM and linear AM modulation.
The document provides maximum ratings, electrical characteristics, typical performance curves, mechanical dimensions, and detailed recommendations for mounting, heat‑sink design, soldering, and ESD protection. Safety and RoHS compliance information are also included.
| Frequency Range | 889 – 915 MHz |
|---|---|
| Output Power | 13 W |
| Input Power (Pin) | 400 mW |
| Gate Voltage (Vea) | ≤ 12.5 V |
| Drain Voltage (Vpp) | ≤ 17 V |
| Package Size | 66 × 21 × 9.88 mm |
| Operating Temperature Range | -30 °C to +110 °C |
| Typical Efficiency | 30 % |
| Gate Current (typical) | 1 mA |
Nominal output power is available at about 3.5 V (typical) and up to 5 V (maximum).
First screw the module to the heat sink, then solder the leads; use M3 screws tightened to 4.0‑6.0 kgf‑cm.
RoHS compliance is indicated by the letter “G” after the lot marking.
The module case temperature should be kept below 90 °C for long‑term reliability.
