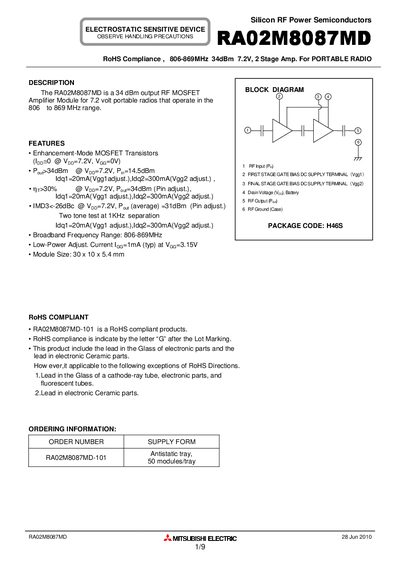

This is the RA02M8087MD product manual. This product is a 34dBm output power RF MOSFET amplifier module for 7.2 volt portable radios that operate in the 806 to 869 MHz range.
The RA02M8087MD is a 34 dBm output RF MOSFET amplifier module designed for 7.2 V portable radios operating in the 806‑869 MHz band. It features enhancement‑mode MOSFET transistors, low‑power gate bias, and a compact 30 × 10 × 5.4 mm package.
The document provides maximum ratings, electrical characteristics, mechanical construction details, recommended mounting and thermal design, as well as safety and handling precautions. It also includes block diagrams, equivalent circuit, and test setup information for both single‑carrier and two‑tone operation.
| Frequency Range | 806‑869 MHz |
|---|---|
| Gate Voltage (Vgg) | 3.15 V |
| Input Power | 100 mW |
| Module Size | 30 × 10 × 5.4 mm |
| Package Code | H46S |
| RoHS Compliance | Yes (letter “G” after lot marking) |
| Recommended Screw Torque | 1.8‑3.0 kgf·cm |
M2.6 screws should be tightened to a torque of 1.8 to 3.0 kgf·cm.
Yes, the module is RoHS compliant and is identified by the letter “G” after the lot marking.
