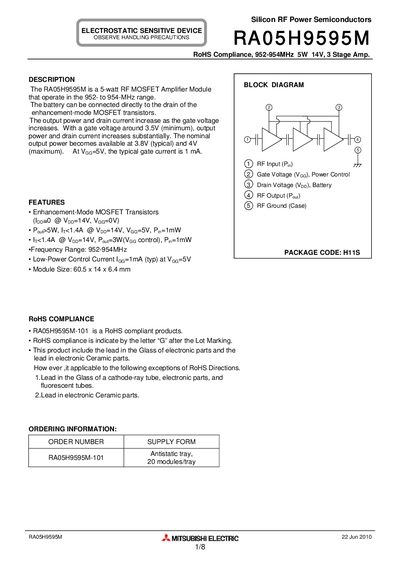

RA05H9595M is a 5-watt RF MOSFET Amplifier Module that operate in the 952- to 954-MHz range. It has enhancement-mode MOSFET transistors, output power and drain current increase as the gate voltage increases
The RA05H9595M is a 5‑watt RF MOSFET amplifier module operating in the 952‑954 MHz band. It uses enhancement‑mode MOSFET transistors and provides output power controlled by gate voltage, with typical operation at 3.8 V to 4 V.
The document details electrical characteristics, mechanical dimensions, RoHS compliance, recommended mounting, thermal design, and safety precautions for reliable integration into RF equipment.
| Frequency Range | 952‑954 MHz |
|---|---|
| Output Power | 5 W |
| Package Size | 60.5 × 14 × 6.4 mm |
| Low‑Power Control Current | ~1 mA at Vag = 5 V |
| Recommended Mounting Torque | 4.0‑6.0 kgf·cm |
The module is sensitive to ESD voltages down to 1000 V and requires appropriate ESD precautions.
Mounting screws should be tightened to a torque of 4.0 to 6.0 kgf·cm.
