RA05H8693M is a Silicon RF Power Semiconductors that complies with RoHS standards. It operates in the frequency range of 866-928MHz with a power of 5W and a voltage of 14V. The amplifier uses a 3-stage configuration.

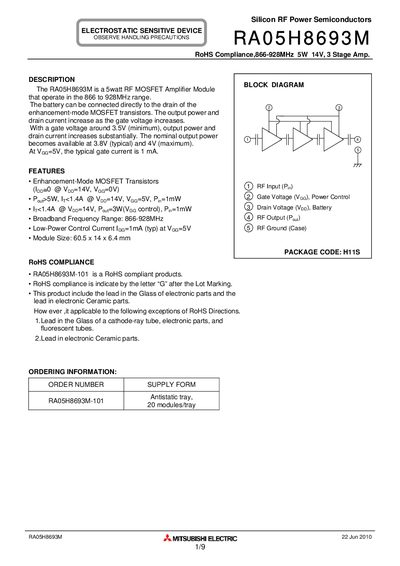

The RA05H8693M is a 5 W silicon RF power MOSFET amplifier module operating from 866 MHz to 928 MHz. It features enhancement‑mode MOSFET transistors, a compact 60.5 × 14 × 6.4 mm package, and RoHS compliance.
The document provides maximum ratings, electrical characteristics, typical performance graphs, mechanical construction details, recommended heat‑sink mounting, ESD precautions, and safety warnings for designers integrating the module into RF equipment.
| Frequency Range | 866 – 928 MHz |
|---|---|
| Output Power | 5 W |
| Package Code | H11S |
| Module Size | 60.5 × 14 × 6.4 mm |
| Input Power (Pin) | 4 mW |
| Gate Voltage (minimum) | 3.5 V |
M3 screws should be tightened to a torque of 4.0 to 6.0 kgf‑cm.
RoHS compliance is indicated by the letter “G” after the Lot Marking.
The module is sensitive to ESD voltages down to 1000 V and requires appropriate precautions.
