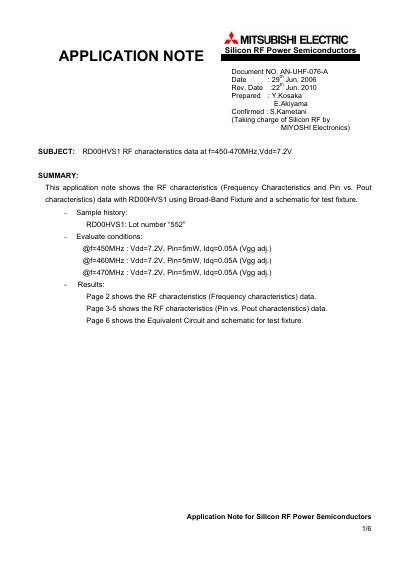

This application note shows the RF characteristics (Frequency Characteristics and Pin vs. Pout characteristics) data with RD00HVS1 using Broad-Band Fixture and a schematic for test fixture.
This application note provides measured RF characteristics for the RD00HVS1 power semiconductor, including frequency response and output power versus input power over the 450‑470 MHz band. Test conditions use a Vdd of 7.2 V and a quiescent current of 50 mA.
The document contains frequency‑characteristic plots, Pin‑vs‑Pout tables for 450 MHz, 460 MHz and 470 MHz, and an equivalent circuit with a detailed bill of parts for the test fixture.
