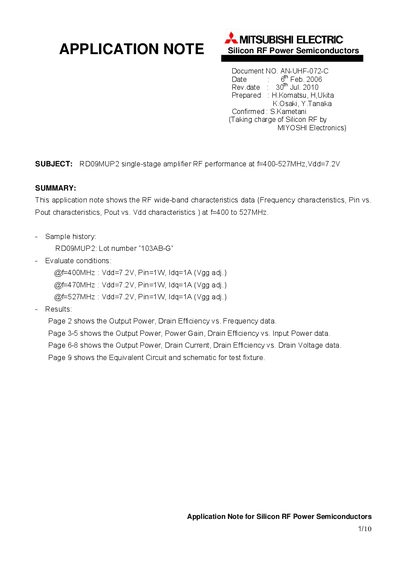

Mitsubishi Electric RDO9MUP2 Application Note AN-UHF-072-C

About this manual

The document provides measured RF characteristics of the RDO9MUP2 single‑stage amplifier, including output power, gain, drain efficiency, and drain current across a frequency range of 400 MHz to 527 MHz. Test conditions use a 7.2 V supply, 1 W input power, and a quiescent drain current of 1 A.

Data are shown in several plots: output power versus frequency, output power/power gain/drain efficiency versus input power, and output power/drain current/drain efficiency versus drain voltage. An equivalent circuit and a parts list for the test fixture are also included.

What's inside

• Summary
• Output Power vs Frequency
• Output Power, Power Gain, Drain Efficiency vs Input Power
• Output Power, Drain Current, Drain Efficiency vs Drain Voltage
• Equivalent Circuit
• Parts List
