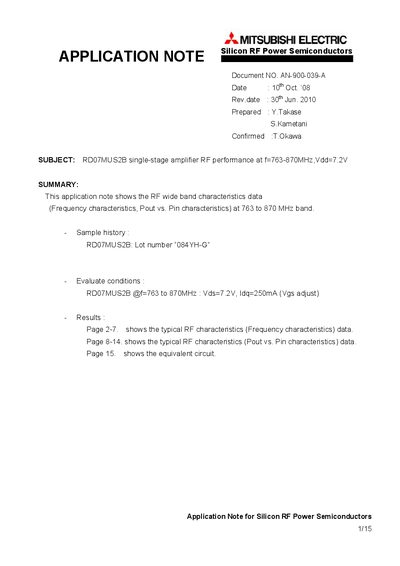

This application note shows the RF wide band characteristics data (Frequency characteristics, Pout vs. Pin characteristics) at 763 to 870 MHz band.
The document provides measured RF characteristics for the RDO7MUS2B single‑stage amplifier, including frequency response, output‑power versus input‑power curves, and an equivalent circuit diagram. Sample history, evaluation conditions, and test results are summarized.
Data are shown for supply voltage Vdd = 7.2 V and quiescent current Idq = 250 mA across the 763‑870 MHz band. The note also lists the component values used in the reference circuit.
| Supply voltage (Vdd) | 7.2 V |
|---|---|
| Quiescent current (Idq) | 250 mA |
| Frequency range | 763 MHz – 870 MHz |
| Typical output power | 3.8 W (35.8 dBm) |
| Input power for Pout vs. Pin curves | 0.5 W (27 dBm) – 1 W (30 dBm) |
The measurements were performed with a supply voltage of 7.2 V.
At 763 MHz the amplifier delivers about 3.8 W (35.8 dBm).
The document reports results from 763 MHz up to 870 MHz.
