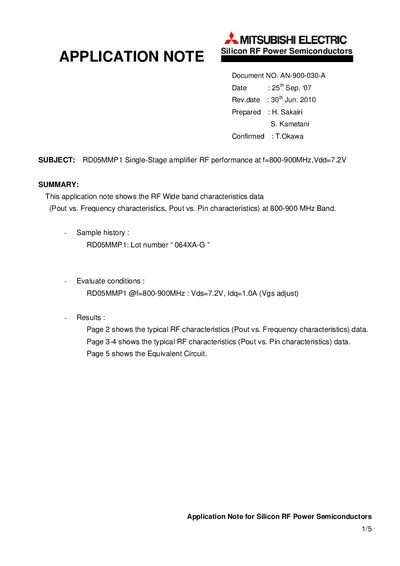

This application note shows the RF Wide band characteristics data (Pout vs. Frequency characteristics, Pout vs. Pin characteristics) at 800-900 MHz Band.
The document provides measured RF characteristics of the RDO5MMP1 single‑stage power amplifier, including output power versus frequency and input power, gain, and efficiency over the 800‑900 MHz band. Sample history, evaluation conditions, and typical results are summarized, with detailed tables for frequency and Pout‑Pin curves.
An equivalent circuit and a parts list for the amplifier board are also included, showing component values such as capacitors, inductors, and resistors used in the design.
| Frequency range | 800‑900 MHz |
|---|---|
| Supply voltage (Vdd) | 7.2 V |
| Typical input power (Pin) | 0.7 W |
The amplifier is specified for operation from 800 MHz to 900 MHz.
The device is powered with a 7.2 V supply (Vdd).
The measurements were performed with an input power of 0.7 W.
