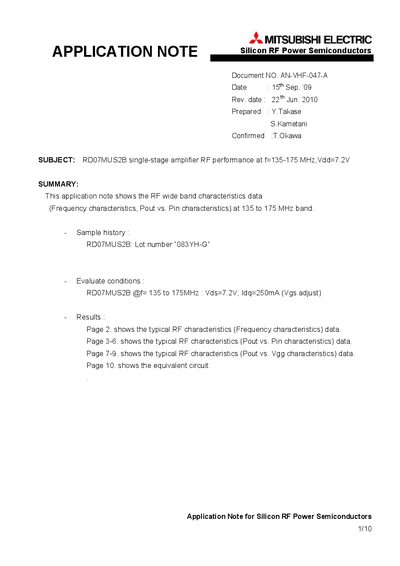

This application note shows the RF wide band characteristics data (Frequency characteristics, Pout vs. Pin characteristics) at 135 to 175 MHz band.
This application note provides measured RF performance of the Mitsubishi Electric RDO7MUSZ2B single‑stage power amplifier. Test conditions use a supply voltage of 7.2 V and a quiescent current of 250 mA over the 135‑175 MHz band.
The document includes frequency characteristics, output‑power versus input‑power curves, output‑power versus gate‑voltage curves, an equivalent circuit diagram, and a complete component list for the test board.
| Supply voltage (Vdd) | 7.2 V |
|---|---|
| Quiescent current (Idq) | 250 mA |
| Frequency range | 135‑175 MHz |
| Typical output power at 135 MHz | 7.04 W |
The test circuit uses a supply voltage of 7.2 V.
The quiescent current is set to 250 mA.
The data cover the 135 MHz to 175 MHz band.
