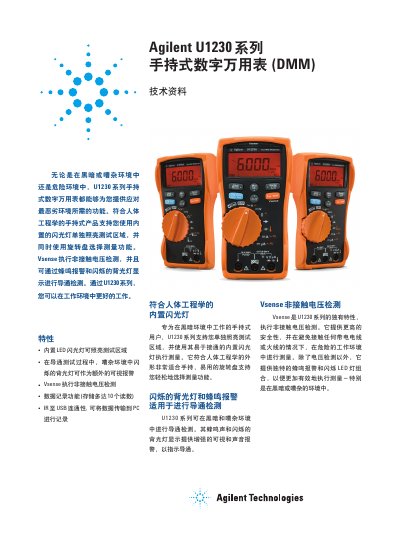

U1230 series handheld digital multimeter (DMM) is a handheld product suitable for working in dark or noisy environments. It has an integrated LED flashlight, a flashing backlight and a beeper to help you perform continuity tests and non-contact voltage detection.
The Agilent U1230 series handheld digital multimeter is designed for use in dark, noisy or hazardous environments. It includes an ergonomic design, built‑in LED flash, non‑contact voltage detection (Vsense), audible and visual continuity alerts, data‑record capability for up to 10 readings, and IR‑to‑USB data transfer.
The device offers a wide range of measurement functions—voltage, resistance, current, diode testing, capacitance, frequency and temperature—across both DC and AC modes. Detailed electrical specifications, battery information, dimensions, and optional accessories are provided in the following sections. This manual is written in Chinese.
| Input impedance | 10 MΩ (typical) |
|---|---|
| Battery type | 4 × 1.5 V AAA |
| Power consumption (max) | 450 mVA |
| Dimensions (HxWxD) | 169 mm × 86 mm × 52 mm |
It uses the Vsense function to detect voltage without touching the conductor, providing audible and visual alerts.
The multimeter can store up to 10 readings in its data‑record memory.
The battery life is about 500 hours under typical use when the backlight and flash are off.
The device includes IR‑to‑USB connectivity for transferring data to a computer.
