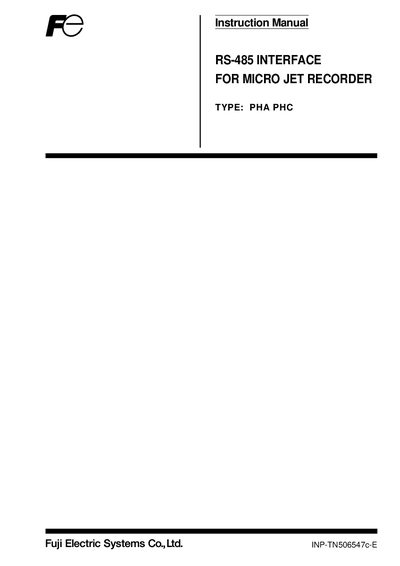

This document is the RS-485 interface manual for Fuji Micro Jet Recorder TYPE: PHA PHC. It mainly introduces the functions, specifications, connections, transmission data formats, etc.
This manual provides detailed information on the RS‑485 interface option for the PH series microjet recorder, including installation, wiring, transmission parameters, and data formats. It guides users through checking the delivered product, connecting up to 31 recorders, and configuring communication settings.
The document covers physical interface specifications, cable requirements, terminal diagrams, and step‑by‑step procedures for setting station numbers, baud rates, parity, and other transmission parameters.
