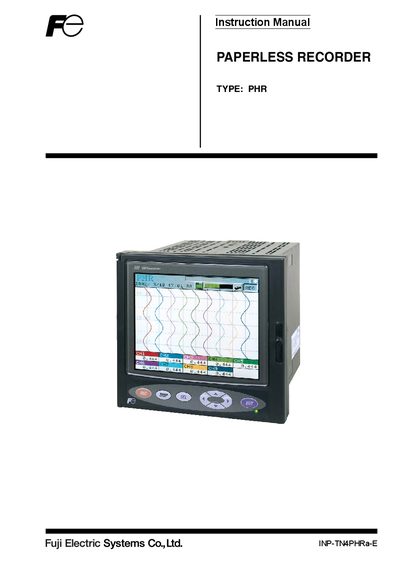

This is the instruction manual of Fuji Paperless Recorder (Type: PHR)
This manual covers the Paperless Recorder (type PHR) from Fuji Electric, describing safety precautions, mounting methods, wiring, and the functions of each part. It includes detailed instructions for setting parameters, using the Ethernet and Compact Flash features, and performing regular maintenance and calibration.
The document also provides troubleshooting tips, specifications, and appendices that explain data formats, differences between models, and how to export recorded data to Excel. All information is intended for end‑users and qualified technicians who install and operate the recorder.
| Built‑in fuse type | TR‑5 19372, 3.15A (Wickmann‑Werke GmbH) |
|---|---|
| External fuse recommendation | 250 V, 1 A |
| External fuse (slow‑blow) rating | 250 V, 3.25 A, Type T |
| Operating temperature range | 0 °C to 50 °C |
| Operating humidity range | 20 % RH to 80 % RH |
| Maximum continuous vibration | 2.45 m/s² or lower |
| Memory card type | Compact Flash |
Never turn on the power before all mounting and wiring work are finished, and always turn off power before attaching or detaching modules.
No, the built‑in fuse cannot be replaced; an external fuse with a rating of 250 V, 1 A should be provided for protection.
The recorder uses a Compact Flash memory card for data storage.
