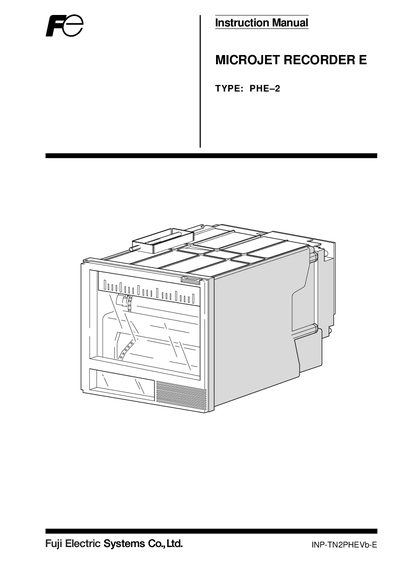

This manual provides detailed instructions on how to operate the Fuji Microjet Recorder for recording measurement results.
This manual covers all aspects of the Fuji Electric PHE-2 Microjet Recorder, including safety cautions, proper installation, wiring procedures, and detailed operating instructions. It also describes maintenance tasks, adjustment modes, troubleshooting steps, and provides example recordings and printouts.
The document includes specifications, parameter settings, and appendices for optional units, system parameters, and hardware changes, helping qualified engineers set up and service the recorder safely and efficiently.
| Maximum input points | 6 |
|---|---|
| Thermocouple range | K‑type 0 °C to 1200 °C |
| Alarm output points | 6 points (intermittent) |
Turn off the main power, ensure the unit is properly earthed, and use wiring materials that meet the rating to avoid electric shock or fire.
The recorder can handle up to six input points, such as thermocouples, resistance bulbs, and DC voltage signals.
The battery replacement procedure is described in the Maintenance – Inspection section of the manual.
