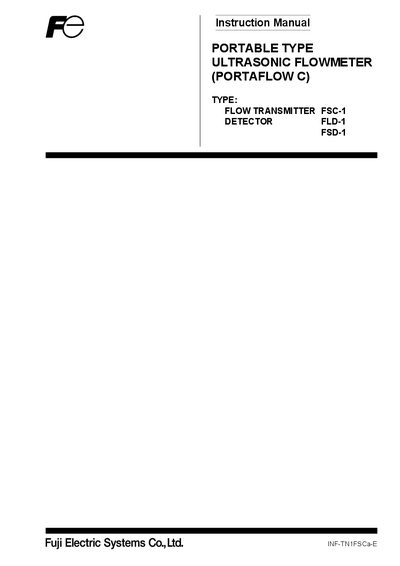

This is a manual for the portable type ultrasonic flowmeter (Portaflow C), which mainly introduces the use, installation and maintenance of the product
This manual provides complete instructions for the portable type ultrasonic flowmeter (Portaflow C) offered by Fuji Electric. It includes safety precautions, wiring diagrams, sensor mounting methods, and detailed steps for installation, operation, and troubleshooting.
The document also describes configuration of the SD memory card, printer functions, built‑in battery replacement, and data logging features, along with a full list of error codes and their remedies.
| Ambient temperature (flow transmitter, without printer) | ‑10 to +55 °C |
|---|---|
| Ambient humidity (flow transmitter) | ≤ 90 % RH |
| Outer diameter of piping | 13 mm to 6000 mm |
| Wall thickness of piping | 0.1 mm to 100.00 mm |
| Lining thickness of piping | 0.01 mm to 100.00 mm |
Turn the power on, then choose the language preference as shown in the power‑on screen.
The manual provides two mounting methods: the V method and the Z method, with step‑by‑step instructions for each.
Section 15 explains the procedure for replacing the built‑in battery of the flowmeter.
The manual describes the formatting steps in section 4.3.2.
