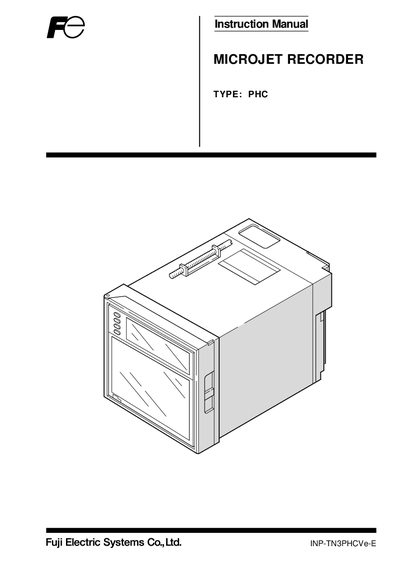

This document is an instruction manual for the MicroJet Recorder PHC model produced by Fuji Electric Systems Co., Ltd. in 1996. The manual provides detailed instructions for installation, operation, and preparation of the product, as well as important notes and specifications changes.
The Fuji Electric INP‑TN3PHC Microjet Recorder is a panel‑mount data‑logging instrument that records up to six analog input channels. The manual provides safety cautions, installation guidelines, wiring instructions, and detailed operating procedures.
It also describes parameter setting, maintenance tasks, troubleshooting steps, and specifications such as power requirements, input ranges, and accessory part numbers.
| Thermocouple input range | K type 0 °C to 1200 °C |
|---|---|
| Resistance‑bulb input range | 0 °C to 500 °C |
| DC voltage input range | -5 V to +5 V |
| Recording head part number | PHZH1002 |
| Recording paper part number | PEXOODL1‑5000B (approx. 15 m, 6 packs) |
| Backup battery life | About 10 years at normal temperature |
Place the recording head in a vinyl bag, seal it, and treat it as a non‑combustible object.
Yes, the type of input signal can be changed within the total number of recording points.
