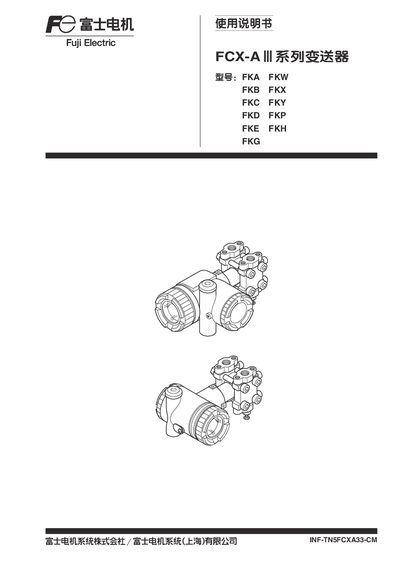

Fuji Electric FCX-A Series Transmitter User Manual

This document is an instruction manual for the INF-TN5FCXA33-CM device. The device complies with the relevant directives for electromagnetic compatibility and use in potentially explosive atmospheres, and it is characterized by high performance and stability.

Brand: FUJI Motor
Category: Industrial Supply
Document type: User Manual
Language: Chinese
Pages: 128
File format: PDF
File size: 2.3 MB
Published: 20 March, 2012
Updated: 28 September, 2023
MD5 checksum: 015E0E81E226938717663ED1D7C8EEC1
PDF: Fuji Electric FCX-A Series Transmitter User Manual PDF

About this manual

This user manual covers the safe handling, installation, wiring, and maintenance of the FCX-A series transmitters. It includes detailed safety precautions for explosive‑gas environments, wiring requirements, and procedures for adjusting zero‑point, full‑scale, and other parameters.

The document also lists the product’s technical data such as output type, power supply, maximum working pressure, and how to verify model and delivery items using the name‑plate information. Appendices provide HART communication details and long‑term storage recommendations. This manual is written in Chinese.

What's inside

Safety Precautions
Installation and Piping
Operation and Stop
Adjustment and Calibration
Maintenance and Parts Replacement
Technical Specifications
HART Communication
Long‑term Storage
Model Confirmation and Delivery Items

Specifications

Power Supply	DC
Maximum Working Pressure (M.W.P)	Specified on name‑plate
Range	Specified on name‑plate
