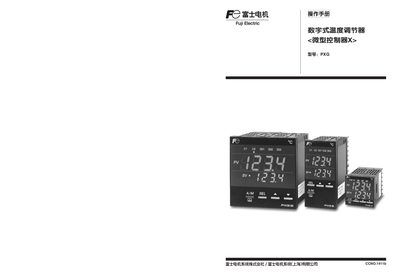

Fuji Electric PXG Digital Temperature Regulator X User Manual

This manual introduces the use of PXG digital temperature controller.

Brand: FUJI Motor
Category: Automation control Equipment
Document type: User Manual
Language: Japanese
Pages: 156
File format: PDF
File size: 3.7 MB
Published: 20 March, 2012
Updated: 30 September, 2023
MD5 checksum: 4D64CF887C6DC553B15D69F0941A7474
PDF: Fuji Electric PXG Digital Temperature Regulator X User Manual PDF

About this manual

This manual covers safety precautions, part identification, and basic operation for the Fuji Electric PXG digital temperature regulator. It includes detailed chapters on channel parameters, PID control settings, and communication configuration.

Installation guidelines describe mounting, wiring, and environmental limits such as temperature, humidity, and IP rating. The document also provides troubleshooting advice and a full list of specifications for the device. This manual is written in Japanese.

What's inside

Safety Precautions
Part Names and Functions
Basic Operation and Parameter Overview
Channel 1 Parameter Settings
PID Parameter Settings
Installation Guidelines
Wiring and Connections
Communication Settings
Configuration Parameters
Appendix

Specifications

Operating Temperature Range	-10 °C to 50 °C
Front Panel Rating	NEMA‑4X (IP66 equivalent)
Main Power Supply Rating	250 V 1 A (optional up to 600 V)
Maximum Voltage for External Wiring	600 V

Frequently asked questions

What temperature range can the PXG controller operate in?

The controller is rated for operation from –10 °C up to 50 °C.

What IP rating does the front panel have?

The front panel meets the NEMA‑4X standard, equivalent to IP66 protection.

Download PDF (3.7 MB)
