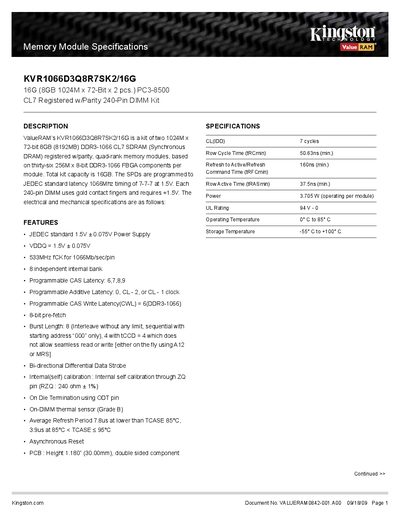

KVR1066D3Q8R7SK2/16G Memory Module Specifications
The document provides detailed specifications for Kingston's KVR1066D3Q8R7SK2/16G memory module kit, which consists of two 8 GB DDR3‑1066 registered DIMMs. It outlines electrical, mechanical, and environmental characteristics, including timing parameters, voltage requirements, and power consumption.
Key features include JEDEC‑standard 1.5 V operation with a +0.075 V margin, programmable CAS latency options, on‑DIMM thermal sensor, and a 240‑pin DIMM form factor. Physical dimensions and UL rating are also listed for system integrators and OEMs.
| Total Kit Capacity | 16 GB (2 × 8 GB) |
|---|---|
| Memory Type | DDR3‑1066 CL7 Registered w/Parity 240‑Pin DIMM |
| Operating Voltage | 1.5 V + 0.075 V |
| Power Consumption per Module | 3.705 W |
| Operating Temperature | 0 °C to 85 °C |
| Storage Temperature | -55 °C to +100 °C |
| Row Cycle Time (tRCmin) | 50.63 ns (min) |
| Row Active Time (tRASmin) | 37.5 ns (min) |
| PCB Height | 1.180 in (30.00 mm) |
The kit provides a total capacity of 16 GB, made up of two 8 GB modules.
It operates at a JEDEC‑standard 1.5 V with an additional 0.075 V margin.
The module can operate from 0 °C up to 85 °C.
