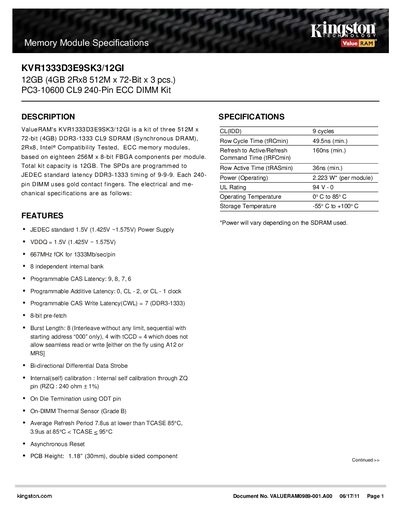

KVR1333D3E9SK3/12GI 12GB (4GB 2Rx8 512M x 72-Bit x 3 pcs.) PC3-10600 CL9 240-Pin ECC DIMM Kit is a ValueRAM memory product. It is a kit of three 512M x 72-bit (4GB) DDR3-1333 CL9 SDRAM (Synchronous DRAM), 2Rx8, Intel® Compatibility Tested, ECC memory modules, based on eighteen 256M x 8-bit FBGA components per module. Total kit capacity is 12GB. The SPDs are programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9. Each 240- pin DIMM uses gold contact fingers.
The KVR1333D3E9SK3/12GI is a ValueRAM kit of three 4 GB DDR3‑1333 CL9 ECC DIMM modules, designed for Intel® platforms and featuring JEDEC‑standard 1.5 V operation. Each 240‑pin DIMM uses gold contacts and includes on‑DIMM thermal sensing.
Key specifications include a total capacity of 12 GB, 1.5 V supply voltage, CAS latency of 9, operating temperature range of 0 °C to 85 °C, and a module height of 1.18 in (30 mm). Electrical characteristics such as power consumption (2.223 W per module) and refresh periods are also provided.
| Total Capacity | 12 GB (3 × 4 GB) |
|---|---|
| Memory Type | DDR3‑1333 CL9 ECC DIMM |
| Supply Voltage | 1.5 V (1.425 V ~ 1.575 V) |
| CAS Latency | 9 cycles |
| Operating Temperature | 0 °C to 85 °C |
| Power Consumption (per module) | 2.223 W |
| Module Height | 1.18 in (30 mm) |
| Average Refresh Period | 7.8 µs (<85 °C) |
The kit provides a total capacity of 12 GB, made up of three 4 GB modules.
It operates on a JEDEC standard 1.5 V supply, with a tolerance of 1.425 V to 1.575 V.
The modules are rated for operation from 0 °C up to 85 °C.
