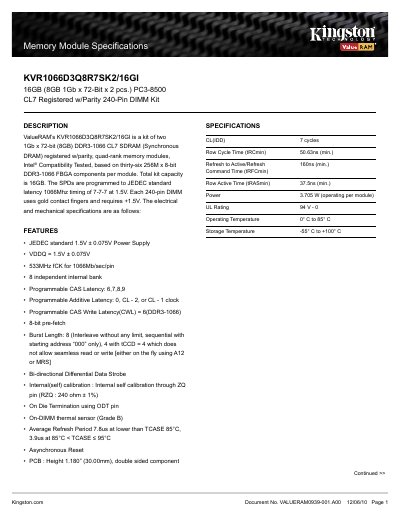

KVR1066D3Q8R7SK2/16GI is a memory product in the ValueRAM series from Kingston. It uses the DDR3-1066 standard and has a capacity of 16GB. It is compatible with Intel®.
The KVR1066D3Q8R7SK2/16GI kit consists of two 8 GB DDR3‑1066 CL7 registered DIMM modules, each with 240‑pin, gold‑finger contacts and a +1.5 V power requirement. The modules are JEDEC‑standard, feature on‑DIMM thermal sensors, and are Intel‑compatibility tested.
Key electrical and mechanical parameters include a 1.5 V ± 0.075 V supply, 533 MHz fCK, programmable CAS latency (6‑9), and a power consumption of 3.705 W per module. Operating temperature ranges from 0 °C to 85 °C, with storage limits from –55 °C to +100 °C. This manual is written in Chinese.
| Supply Voltage | 1.5 V ± 0.075 V |
|---|---|
| VDDQ | 1.5 V ± 0.075 V |
| Clock Frequency | 533 MHz |
| CAS Latency (programmable) | 6, 7, 8, 9 |
| Power Consumption (per module) | 3.705 W |
| Operating Temperature | 0 °C to 85 °C |
The kit provides a total capacity of 16 GB, consisting of two 8 GB modules.
Each module requires a +1.5 V supply.
Yes, the modules conform to JEDEC standard specifications.
The modules are programmed to JEDEC standard latency 7‑7‑7 at 1.5 V.
