KHX1600C8D3T1K2/4GX 4GB (2GB 256M x 64-Bit x 2 pcs.) DDR3-1600 CL8 240-Pin DIMM Kit is a Kingston DDR3-1600 CL8 SDRAM memory module with a capacity of 4GB and supports Intel® XMP (Extreme Memory Profiles). It has been tested to run at DDR3-1600 low latency timing 8-8-8-24 and 1.65V voltage.

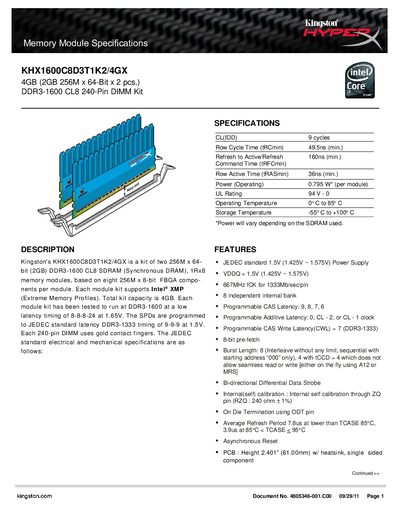

This document provides the technical specifications for Kingston's KHX1600C8D3T1K2/4GX DDR3-1600 memory module kit, which consists of two 2 GB 256M × 64‑bit DIMMs. It outlines the electrical characteristics, timing parameters, and physical dimensions required for system integration.
Key features include a DDR3‑1600 CL8 operation at 1.5 V, power consumption of 0.795 W per module, and an operating temperature range of 0 °C to 85 °C. The kit supports Intel XMP profiles and includes detailed timing values such as CL(IDD) 9 cycles and Row Cycle Time 49.5 ns.
| Total Capacity | 4 GB (2 GB × 2) |
|---|---|
| Memory Type | DDR3‑1600 CL8 240‑Pin DIMM |
| Operating Voltage | 1.5 V (1.425 V ~ 1.575 V) |
| Power Consumption | 0.795 W per module |
| Operating Temperature | 0 °C to 85 °C |
| CL(IDD) | 9 cycles |
| Row Cycle Time (tRCmin) | 49.5 ns |
| Refresh to Active | 160 ns (min.) |
| Row Active Time (tRASmin) | 36 ns (min.) |
The kit provides a total capacity of 4 GB, made up of two 2 GB modules.
It operates at a standard 1.5 V, with a tolerance of 1.425 V to 1.575 V.
Yes, each module kit supports Intel® XMP (Extreme Memory Profiles).
The module can operate from 0 °C up to 85 °C.
