Start here

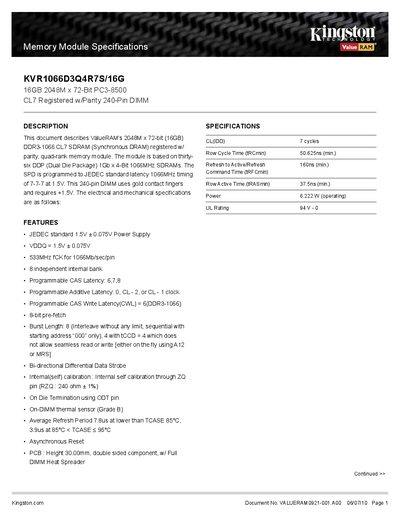

Kingston KVR1066D3Q4R7S/16G Memory Module Specifications
This document provides the technical specifications for Kingston's ValueRAM KVR1066D3Q4R7S/16G 16 GB DDR3‑1066 CL7 registered DIMM. It details electrical parameters, timing, and features such as programmable latencies and on‑DIMM thermal sensor.
The sheet also lists mechanical dimensions, including a PCB height of 30.00 mm and detailed front and back measurements, along with tolerances for each dimension.
Kingston KVR16G specifications
| Capacity | 16 GB (2048 M × 72‑bit) |
|---|---|
| Memory Type | DDR3‑1066 CL7 registered |
| Power Consumption | 6.222 W (operating) |
| Refresh to Active/Refresh (tRFCmin) | 160 ns (min.) |
| Row Active Time (tRASmin) | 37.5 ns (min.) |
| Pin Count | 240‑Pin DIMM |
| Module Height | 30.00 mm |
Source: Kingston KVR1066D3Q4R7S/16G Memory Module Specifications
All Kingston KVR16G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the capacity and organization of the Kingston KVR1066D3Q4R7S/16G module?
It is a 16 GB (2048 M × 72‑bit) DDR3‑1066 CL7 registered DIMM.
From: Kingston KVR1066D3Q4R7S/16G Memory Module Specifications
What are the physical dimensions of the module?
The PCB height is 30.00 mm, with detailed front and back dimensions listed in the document.
From: Kingston KVR1066D3Q4R7S/16G Memory Module Specifications
What is the total memory capacity of the KVR1066D3Q8R7SK2/16G kit?
The kit provides a total capacity of 16 GB, made up of two 8 GB modules.
From: Kingston KVR1066D3Q8R7SK2/16G Memory Module Specifications
What voltage does the Kingston KVR1066D3Q8R7SK2/16G module require?
It operates at a JEDEC‑standard 1.5 V with an additional 0.075 V margin.
From: Kingston KVR1066D3Q8R7SK2/16G Memory Module Specifications
