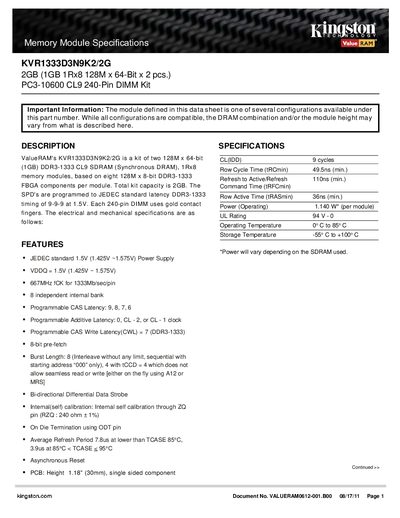

The KVR1333D3N9K2/2G 2GB (1GB 1Rx8 128M x 64-Bit x 2 pcs.) PC3-10600 CL9 240-Pin DIMM Kit is a ValueRAM memory module that uses DDR3-1333 memory. It has a single capacity of 1GB and a total capacity of 2GB. It supports CAS latency 9, 8, 7, 6. It supports 8 independent internal banks, Burst Length 8 and 4, Asynchronous Reset, On Die Termination using ODT pin, Bi-directional Differential Data Strobe, Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%) and Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C.
The KVR1333D3N9K2/2G kit consists of two 1 GB DDR3‑1333 CL9 240‑pin DIMM modules. Each module uses 1Rx8 128M × 64‑bit architecture and operates at a standard 1.5 V supply. The modules are gold‑plated, single‑sided, and meet JEDEC timing of 9‑9‑9.
Technical details include a 667 MHz internal clock, 8‑bit pre‑fetch, burst length of 8, and on‑die termination. Power consumption is about 1.14 W per module, with operating temperatures from 0 °C to 85 °C. Physical dimensions are 30 mm height with standard DIMM form factor.
| Capacity | 2 GB (2 × 1 GB modules) |
|---|---|
| Speed / Standard | PC3‑10600 (1333 MT/s) CL9 |
| Voltage | 1.5 V (1.425 V ~ 1.575 V) |
| CAS Latency | 9 cycles |
| Power Consumption (per module) | 1.140 W |
| Operating Temperature | 0 °C to 85 °C |
| Module Height | 30 mm (1.18 in) |
The kit provides a total capacity of 2 GB, made up of two 1 GB modules.
It operates from a JEDEC‑standard 1.5 V supply (range 1.425 V ~ 1.575 V).
The modules use DDR3‑1333 timing of 9‑9‑9 (CAS latency 9).
The modules operate between 0 °C and 85 °C.
